ROAS の設定（問題）

問題

• 構成図に従い、RT1 と RT2 が通信できるよう各機器に必要な設定を行いなさい
• 以下の出力を得なさい

RT1#ping 10.1.2.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/2 ms

RT1#ping 10.1.2.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.2.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

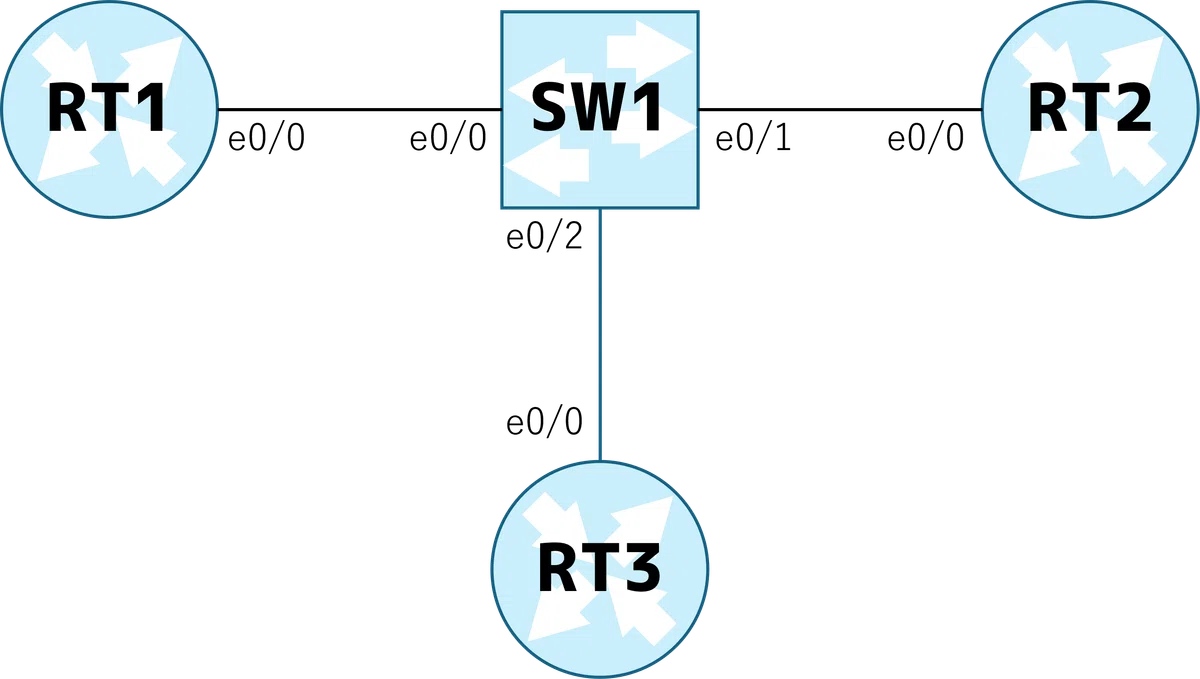

物理構成図

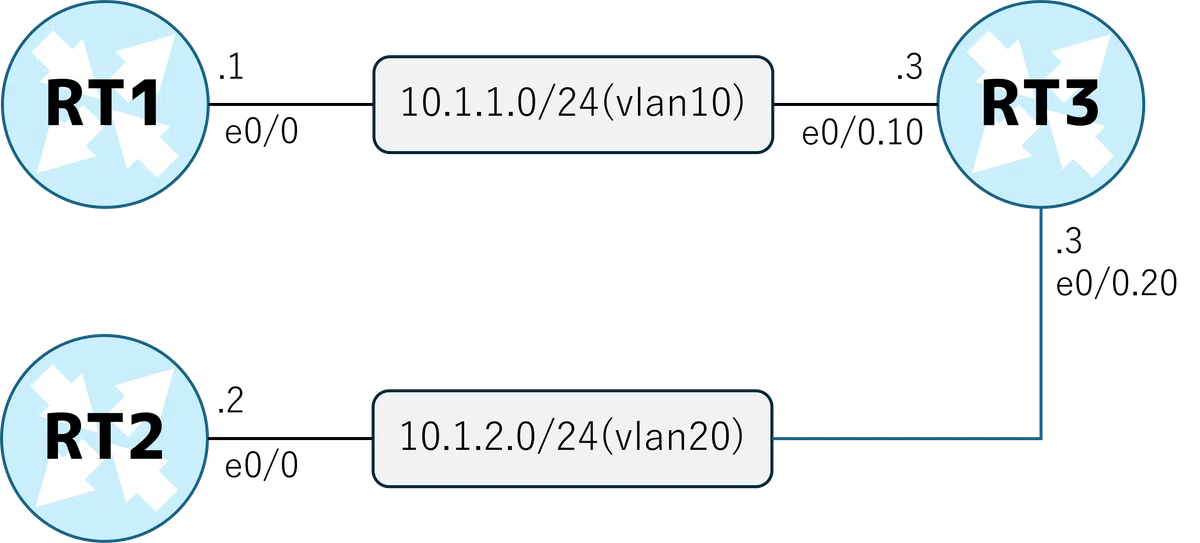

論理構成図

初期 Config

conf t
!
hostname RT1
!
logging console
!
end

conf t
!
hostname RT2
!
logging console
!
end

conf t
!
hostname RT3
!
logging console
!
end

conf t
!
hostname SW1
!
logging console
!
end
