static route の設定（問題）

問題

• 構成図の通り各機器に IP address を設定しなさい
• RT1 に static route を設定して、以下の出力を得なさい。

RT1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP
       n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       H - NHRP, G - NHRP registered, g - NHRP registration summary
       o - ODR, P - periodic downloaded static route, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR
       & - replicated local route overrides by connected

Gateway of last resort is not set

      10.0.0.0/8 is variably subnetted, 3 subnets, 2 masks
C        10.1.1.0/24 is directly connected, Ethernet0/0
L        10.1.1.1/32 is directly connected, Ethernet0/0
S        10.1.2.0/24 [1/0] via 10.1.1.2, Ethernet0/0

• RT3 に static route を設定して、以下の出力を得なさい

RT3#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2, m - OMP
       n - NAT, Ni - NAT inside, No - NAT outside, Nd - NAT DIA
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       H - NHRP, G - NHRP registered, g - NHRP registration summary
       o - ODR, P - periodic downloaded static route, l - LISP
       a - application route
       + - replicated route, % - next hop override, p - overrides from PfR
       & - replicated local route overrides by connected

Gateway of last resort is not set

      10.0.0.0/8 is variably subnetted, 3 subnets, 2 masks
S        10.1.1.0/24 [1/0] via 10.1.2.2, Ethernet0/0
C        10.1.2.0/24 is directly connected, Ethernet0/0
L        10.1.2.3/32 is directly connected, Ethernet0/0

• RT1 (10.1.1.1) と RT3 (10.1.2.3) で ping が成功することを確認しなさい

RT1#ping 10.1.2.3
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.2.3, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
!
RT3#ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms

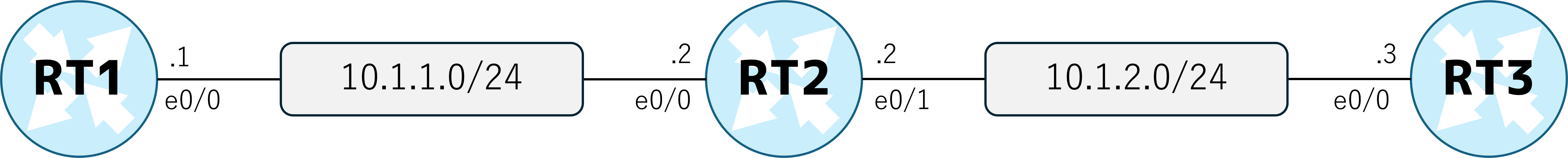

構成図

初期 Config

conf t
!
hostname RT1
!
logging console
!
end

conf t
!
hostname RT2
!
logging console
!
end

conf t
!
hostname RT3
!
logging console
!
end
